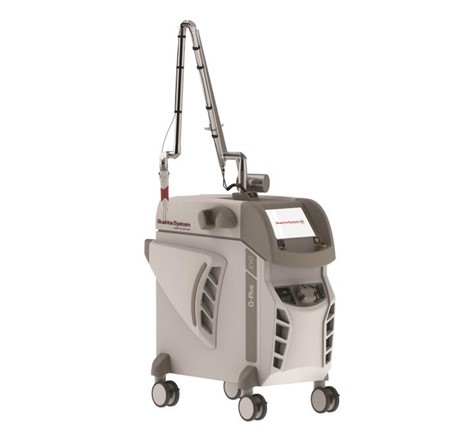

Quanta Q-Plus EVO series

When using the active Q-switch of the Quanta Q-Plus EVO series, very short pulses (6ns for Nd:YAG 1064/532nm and 30ns for Ruby laser 694nm) are delivered with very high peak powers.

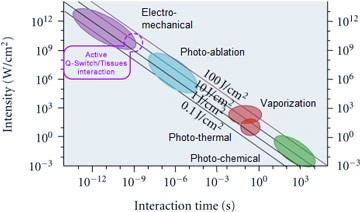

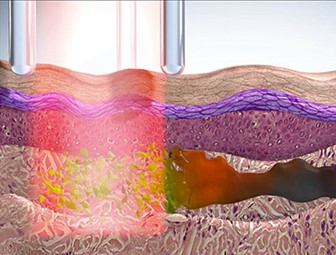

This combination of energy delivery to the tissue enables a highly efficient photo-acoustic effect, of either the pigmented lesion or the tattoo. This short-pulse, high-energy output also reduces the thermal interaction of the tissue. The bigger the thermal interaction, the more loss of energy making the treatment less efficient and potentially causing more damage to the skin. The unwanted tattoo or pigments that have been hit by the high-energy pulse are fragmented and then removed by the body’s own natural defence mechanism, a process called phagocytosis.

The optipulse mode of the Quanta Q-Plus EVO series increases the energy of the emission by 50% and in doing so reduces the optical pick power by 20%. This is used to reduce the transitory post-treatment purpura and risk of hyper-pigmentation, using the 532nm laser.

The laser beam that is generated by any Q-switch laser needs to be a as close to a flat beam as possible.

The Q-Plus EVO series provides an homogeneous beam which reduces the healing time and makes side effects less likely. Quanta Q-Plus EVO series lasers deliver a flat-top beam profile which many of the cheaper lasers and actually some of the more expensive laser (especially passive) cannot deliver. If the laser is not delivering such a homogeneous energy cross-section, then the skin can get hot points which in turn can lead to burns.

Quanta achieves their flat top beam profile by using OPTIBEAM II® handpieces with the ability to deliver high peak powers over a homogeneous output for all spot sizes.

OPTIBEAM II® technology means pulses are deliveredin a square format, round or fractional beam and each of these shapes has its advantages.



Short and long pulse laser emission is available as an additional technology on the Quanta Q-Plus EVO series. This means that the laser can also offer permanent hair reduction, vascular lesions and many more treatments that would be impossible with a standard Q-switch laser on its own. The additional modules are composed of:

• Long and short pulsed Nd:YAG
• Alexandrite
• Long pulses 532nm

The hand pieces can be used with either contact cooling or with the addition of Zimmer cryo cooler

The skin cooler is fully integrated on the Q-Plus ECO series of lasers.

The skin cryo is an adapter that integrates the optic of the laser with a Zimmer air cooling for treatment of large areas.

This is where the Quanta Q-Plus EVO series becomes even more unique.

This is laser hand-piece that can be added to the system. It has been designed to perform ablation procedures both fractional & ablative. This wavelength allows the practitioner to remove layers of the skin with minimal thermal damage or produce a higher level of coagulation suitable for the stimulation of collagen production

2940 effective treats some of the top aesthetic conditions such as

•       Acne Scarring
•       Sun and age spots
•       Stretch marks
•       Resurfacing
•       Wrinkles
•       Skin tightening
•       Scarring
•       Fine lines
•       Skin rejuvenation

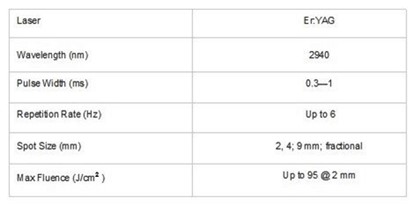

Technical Specifications:

The Q plus EVO series can also be equipped with IPL with 6 different wavelengths available which further enhances the flexibility of the Quanta Q plus EVo series and the return on investment.

IPL can be used for

• Hair reduction
• Pigmented lesions
• Skin rejuvenation
• Active acne
• Vascular treatments
• Much much more



  Technical Specifications:

A must-have wavelength for the Q plus star 1 EVO system, that can be used to treat conditions such as wrinkles, photo rejuvenation, pigmentation (can only be bought when long pulse Nd:YAG is on the system).
